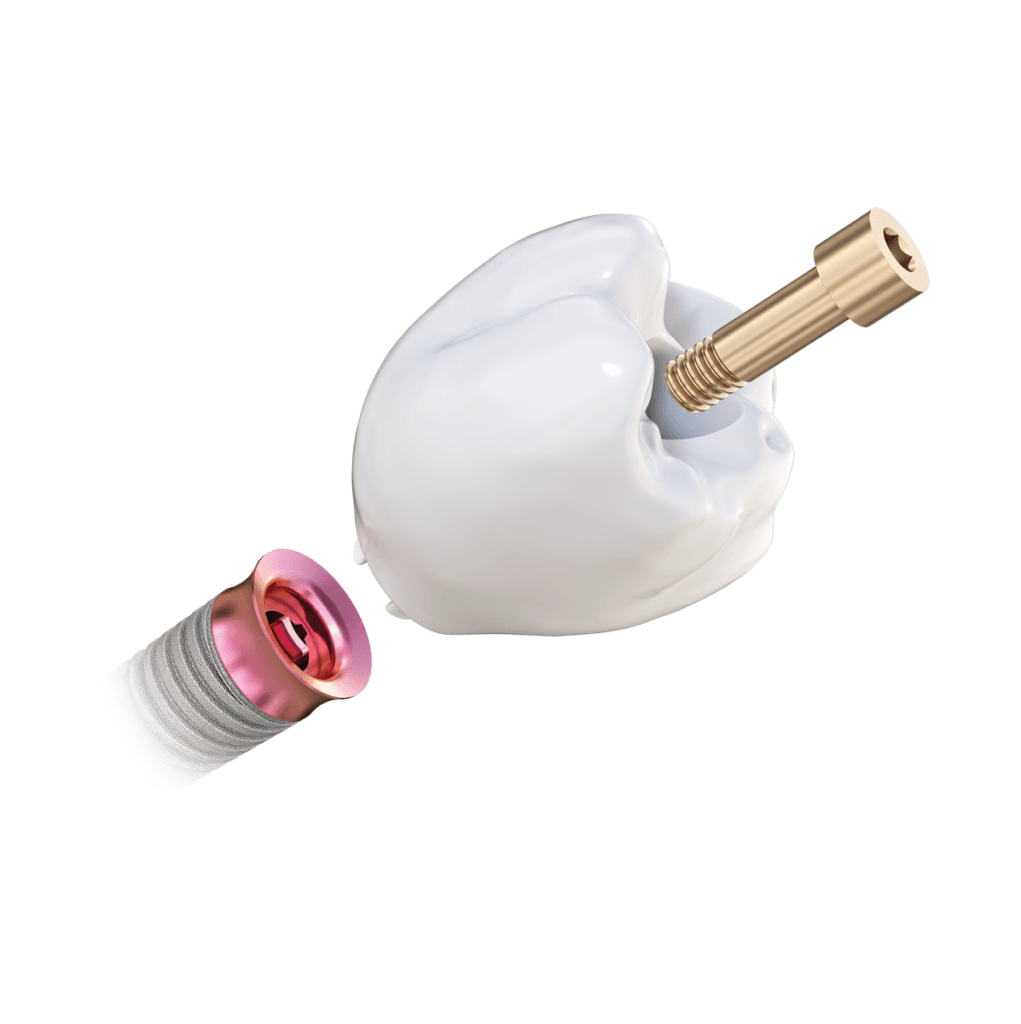

The World's First Digital Implant System Without an Abutment
Technology
Matrix® Digital Apps
included with every matrix® implant
10 matrix® digital applications streamline planning, procedures, and restorations. Fully integrated and complimentary with every implant, they deliver fast, precise, and profitable workflows.
Immediacy (Time)
THE FASTEST DIGITAL WORKFLOW YET
+ Immediate full digital local workflow (chairside) within 1 hour
+ Reducing number of visits in the clinic for the patient dramatically
+ TRI+ connection to all open digital workflows for chairside & labside
Simplicity (Cost)
FREEDOM IN MATERIALS, INDICATIONS & COST
+ Faster Workflow and increased precision by 73% due to no abutment, no cement, no model and no analog
+ No limits in materials, indications and angulations
+ Significant material and cost savings
Personalised (Biology)
DESIGNED FOR LONGTERM SUCCESS
+ 100% screw retained restoration, eliminating the risk of periimplantitis with stronger crestal bone levels
+ 100% patient-individual emergence profile
+ Concave & pink anodized implant shoulder for soft tissue design
unique & patented features of the matrix®
Matrix® SlimNeck
For increased biological width
Matrix® PowerBase
Designed for Zirconia on Titanium
Matrix® SmartLock
For engaging and
non-engaging restorations
Matrix® Millfit
Designed to be milled locally
Matrix® ProFlex
Allows implant placement and
screw channel freedom
Matrix® SmartBolt
Made to support all materials

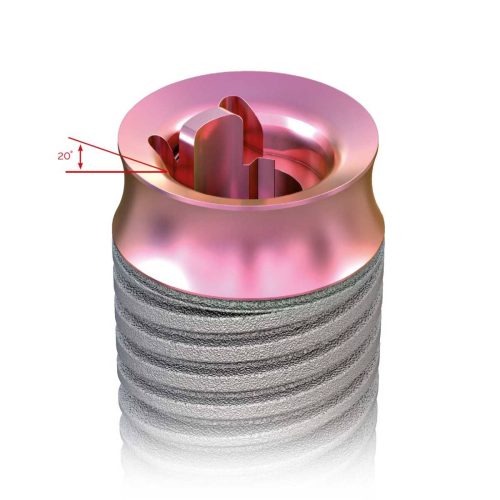

Matrix® PowerBase
A world-class connection designed to support zirconia on titanium
Platforms P37 and P45 with significantly larger area than a Ti-Base
Optimal for force trasmission between implant and crown
Support direct restoration with all materials
Platforms available
P37 (ø3,7mm)
Bone-Level
P45 (ø4,5mm)
Bone-Level
P37 (ø3,7mm)
Multi-Level
P45 (ø4,5mm)
Multi-Level

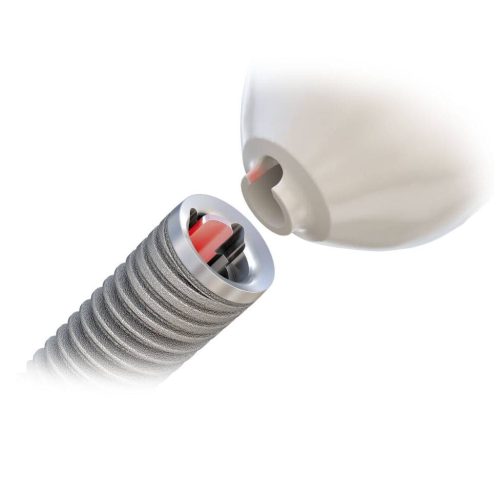

Matrix® SMARTLOCK
a verstatile connection for engaging and non-engaging restorations
Matrix® SmartLock is a self-locking system for automatic positioning, which allows only one single position for crowns and a non-engaging position for multi-unit restorations. It consists of two big vertical rotation blockers with 1.2mm distance for easy milling of the prosthetics and tactile feedback.
Highly precise fit through vertical guidance
Self-locking system for automatic positioning (one position)
Allows for engaging as well as non-engaging connections based on milling strategy

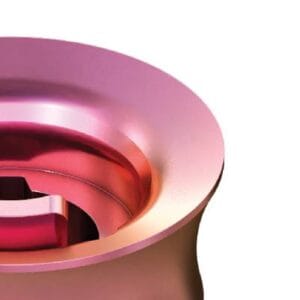

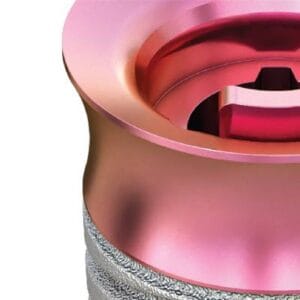

Matrix® SlimNeck
Profiles for increased biological width
Concave multi-level emergence profile for infinitely more esthetics
The Matrix® multi-level implant comes with a modern emergence profile and a unique concave design.
The implant line features a pink anodized neck for optimized translucency and supports modern surgical procedures, such as sub-crestal placements. Ideal for minimal invasive procedures and an increased biological width, Matrix® it’s better than ever in guaranteeing high esthetic results and longevity.
Bone-Level platform switching
The Matrix® bone-level implant features a 20° shoulder for high divergence bridge restorations and integrates platform-switching to preserve the crestal bone.

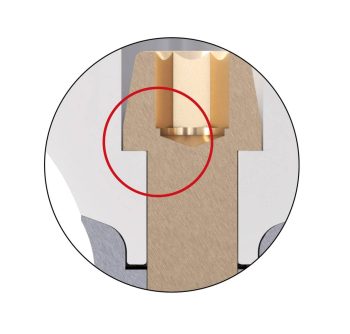

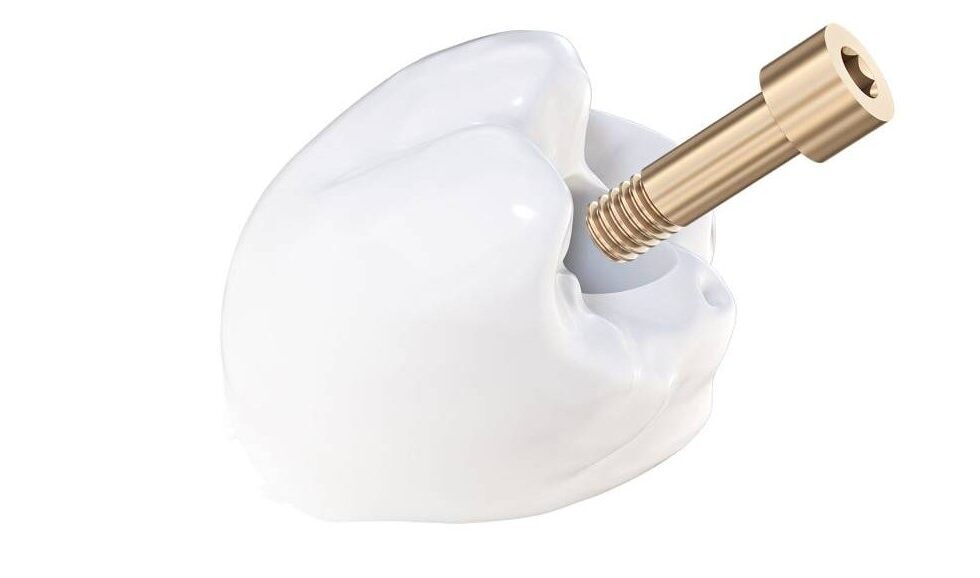

Matrix® Smartbolt
Profiles for increased biological width
Intelligent screw system
for all materials and indications
Three different screw heads for dedicated indications and materials
Special Titanium (grade 23) for maximal strength
Screw-head is designed to allow for ideal material-specific milling strategies
for each material a screw
2.25mm
Flat horizontal screw head for Titanium with straight screw channel
2.6mm
Flat horizontal screw head for Zirconia, Polymers and Metals with angulated screw channels

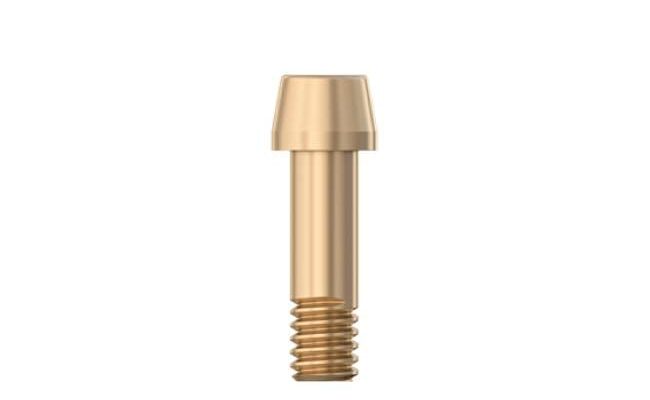

2.8mm
Flat horizontal screw head for Zirconia and Polymers with straight screw channel
2.8mm Long
Flat horizontal screw head for Zirconia and Polymers with long straight screw channel
Metals
Narrow screw-head for metal restorations to minimize diameter of screw-access hole
Ceramics
Medium-size screw-head optimized to support zirconium.

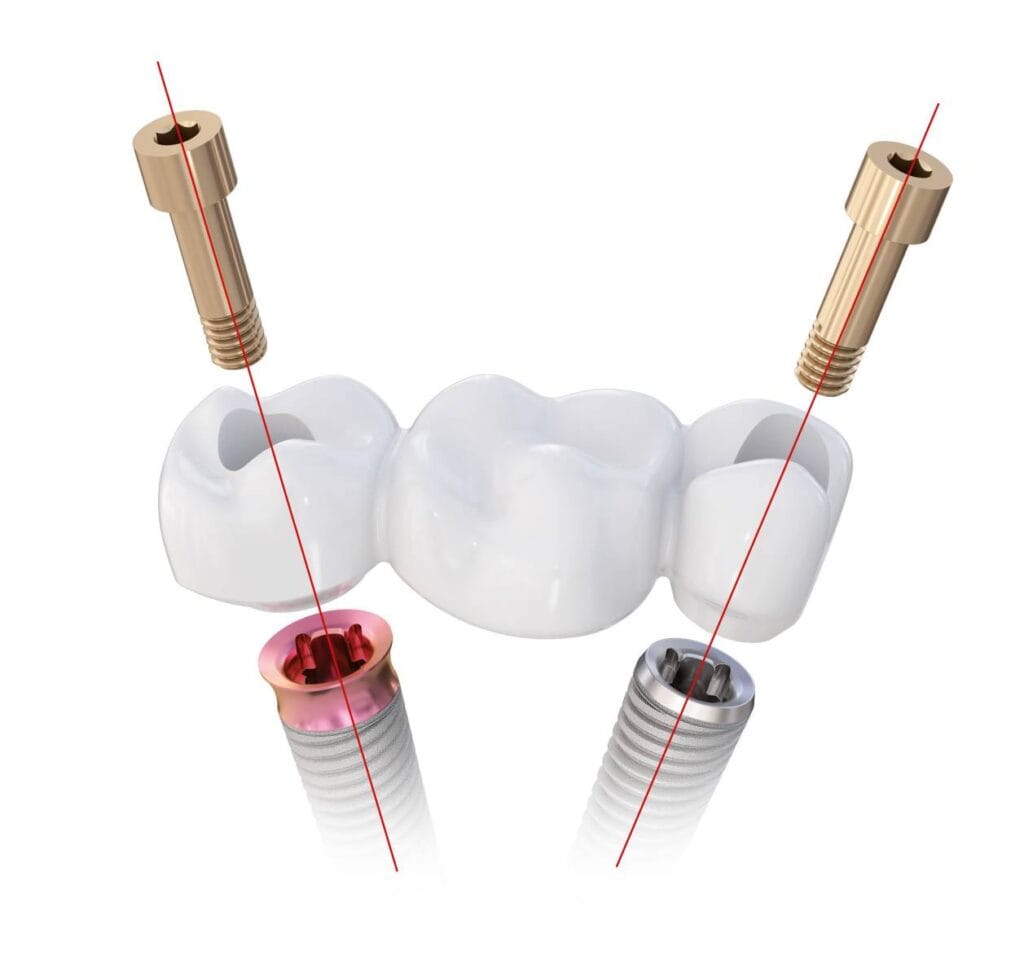

Matrix® ProFlex
Highest design flexibility in local production

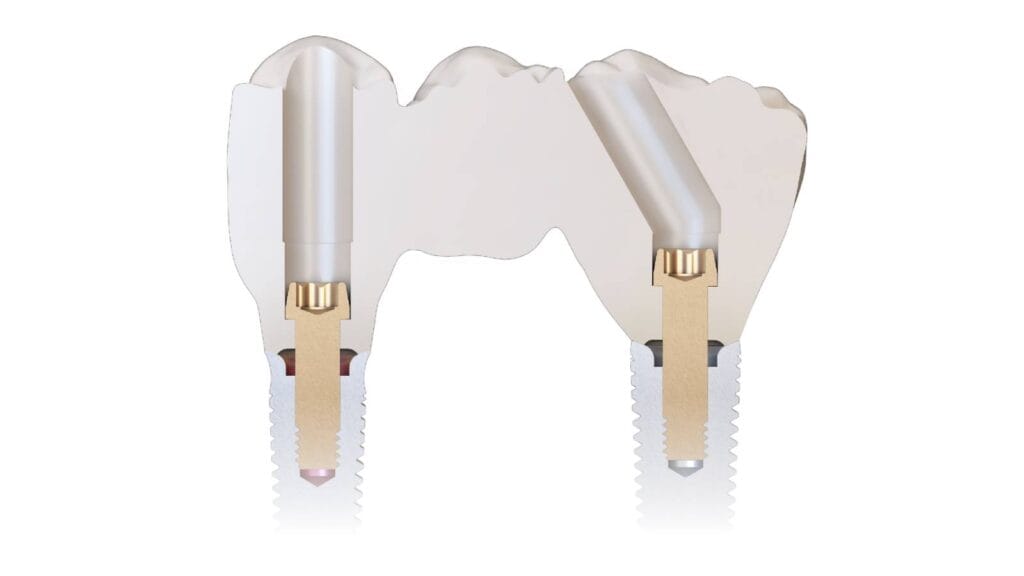

Matrix® ProFlex allows implant divergence up to 50° and 30° angled screw channels. The compact design facilitates the placement of fully anatomical crowns without adjustment and supports easy impression taking for angulated implants
Screw channel up to 20° degree angulation all around
Occlusal esthetics in anterior region
Better handling in posterior region
Allows implant divergence up to 50° and 30° angled screw channels

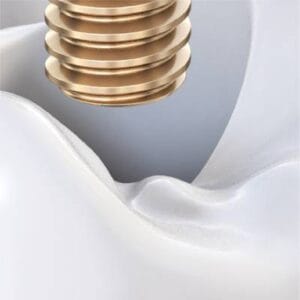

Patient-specific & individual emergence profile
Matrix® allows to create 100% digital, chairside manufactured patient-specific emergence profiles by considering the biological shape and transferring the design 1:1 throughout the whole treatment process (healing, provisional and final restoration). With matrix® any design and shape on any material is possible and guarantees a full- anatomic and high esthetic gingiva management.
Same emergence profile for healing, provisional and final restoration
Production of personalized healing collar from any material
Immediate and efficient through chairside manufacturing option
High esthetic gingiva management

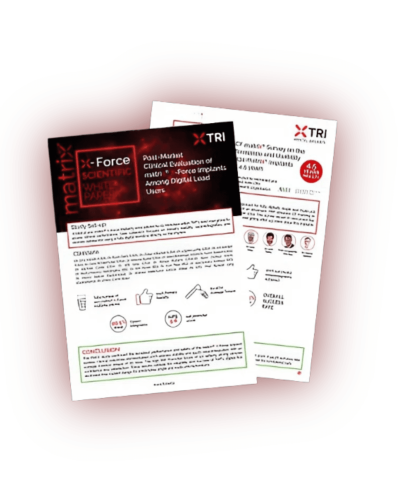

Studies on the matrix® Implant System
Scientific validation of the digital, abutment-free concept
